New in the collection
NORD 49
Compact barnhouse with a double-height living space.
49 m²from€ 95,000excl. VAT · Standard specification, final price in your quote.
About this home
A compact barnhouse with a double-height living room. Downstairs you will find the kitchen and living space behind the panoramic glass facade, a separate bedroom and a bathroom with shower. A ladder leads to an extra sleeping area under the ridge.
Layout
- Living area
- 49 m²
- Storeys
- Single storey with sleeping loft
- Sleeping area
- 1 bedroom + sleeping loft
- Bathroom
- Bathroom with shower
- Kitchen
- Kitchen in the living space
- Living space
- Double-height living space with glass facade

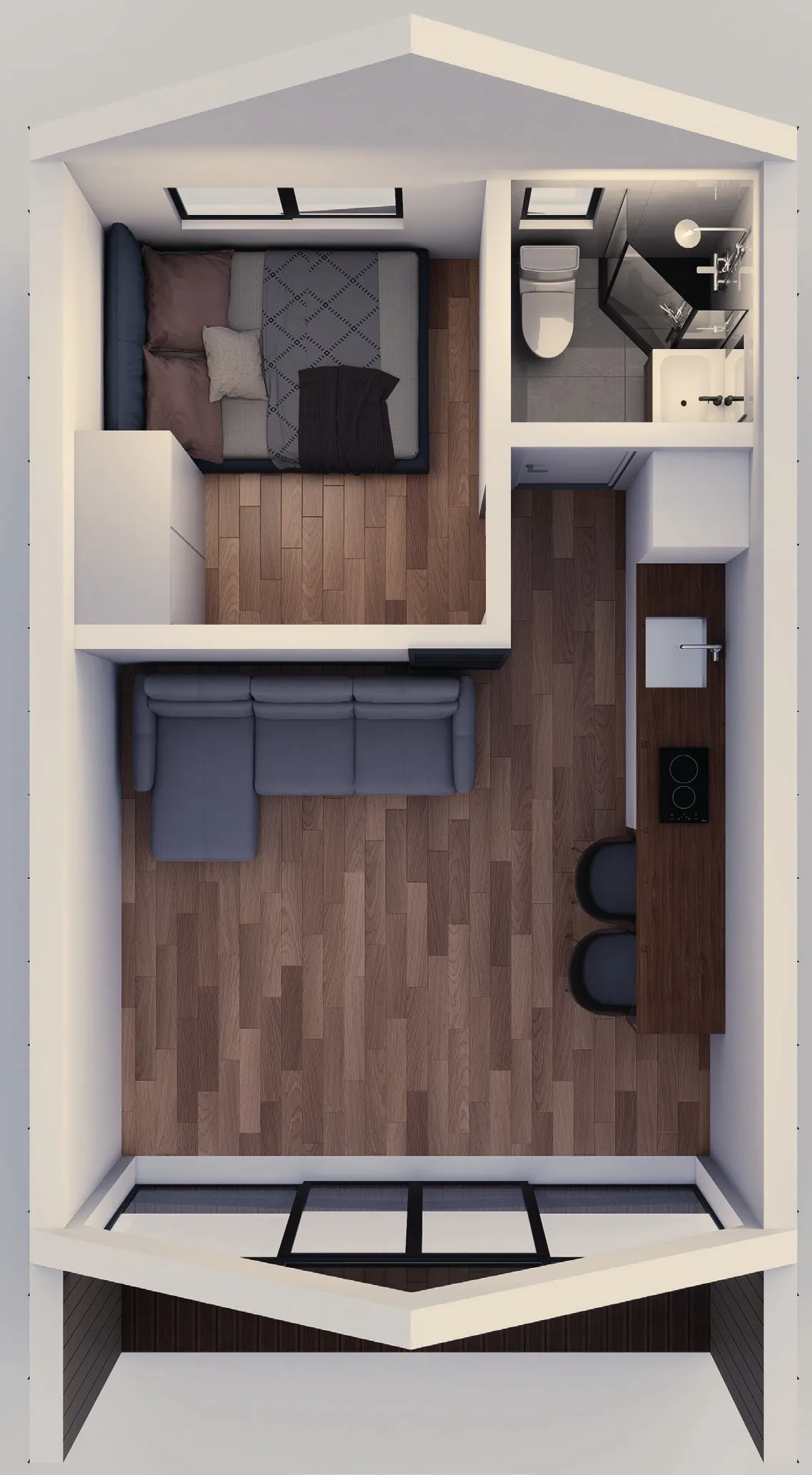

Floor plan

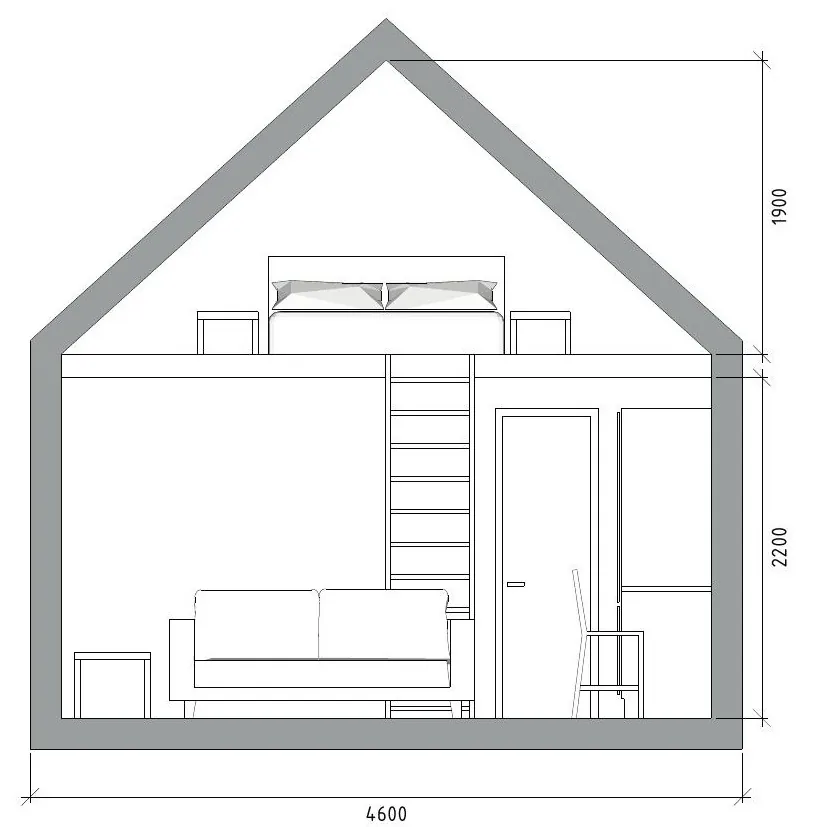

3D view
Technical specifications
- Insulation
- floor 200 mm · walls and roof 150 mm
- Windows
- WDS 76 AD plus, 2-chamber
- External dimensions
- 4600 × 8000 mm
- Load-bearing structure
- Kiln-dried pine 150 × 50 mm
- Floor
- OSB 22 mm
- Roof and facade
- Metal USS 0,45 matt, colour of your choice
- Facade cladding and terrace
- Kiln-dried spruce, treated with Tikkurila Valtti Plus Terrace Oil
- Membranes
- Strotex Dynamic + vapour barrier Strotex AL 90
Energy performance requirements depend on the country and the size of the home; your energy consultant confirms them for your project.
What is included in this price?
Included
- Foundations: groundwork and insulated concrete slab
- Transport to your plot, crane and installation
- Drainage work on your plot, up to 25 m
- Basic kitchen: cabinets, worktop, sink and hob
- Basic bathroom with shower, toilet and washbasin
- Laminate flooring
- Electric water heater: 100 litres, 200 litres for homes with 2 bedrooms
- Basic electric heating
- Basic ventilation: quiet fans in the bathroom and toilet, ventilation cowls on the roof
Not included
- Connection to electricity, water and telecom
- Municipal sewer connection and rainwater tank
- Architect, building permit and studies (energy performance, structural stability, safety coordination)
- Terrace, driveway and landscaping
- Piles or ground improvement in case of poor soil
- Energy options such as a heat pump and solar panels
- VAT
Tailored in your quote
- Extra kitchen appliances and higher-end sanitary fittings (option)
- Air conditioning (option)
- Ventilation system from 50 m² (option, price on request)
- Facade colour and level of finish
- Delivery time and payment schedule
Prices apply to a plot that is easily accessible for a truck and crane. Transport distance, difficult access or longer pipework are stated in advance in your quote.
