ALTO 60

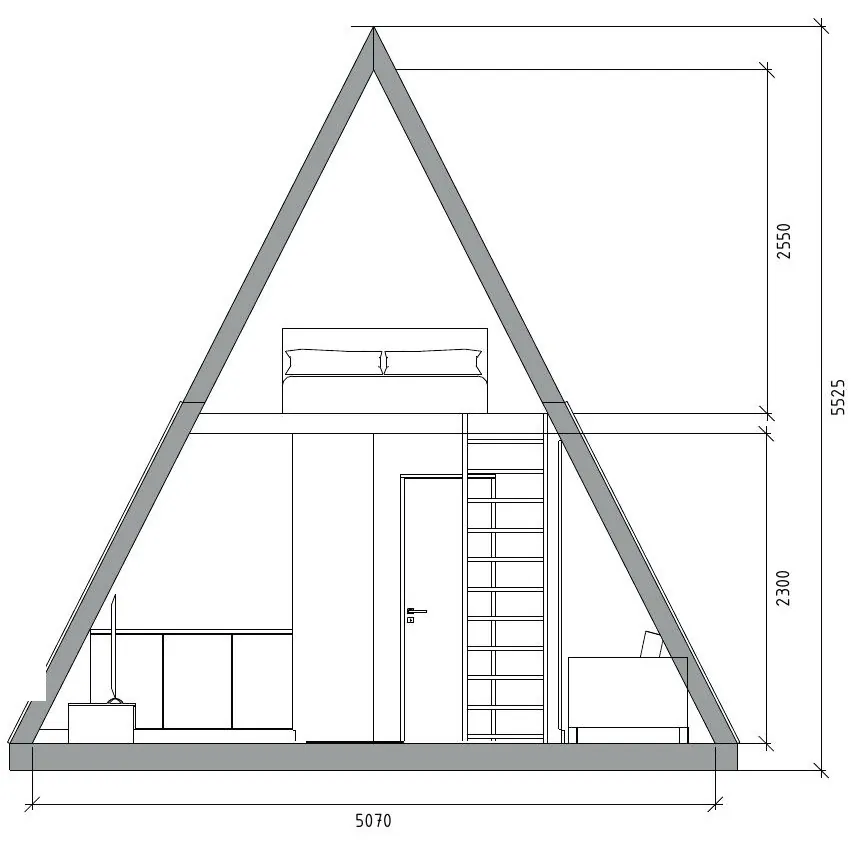

A classic A-frame with a fully glazed front facade. Downstairs are the living room with kitchen, the bathroom with shower and the exit to the terrace. A ladder leads to the mezzanine with the bedroom under the ridge. The roof also forms the walls, so the house is quick to assemble and retains heat well.

Layout

Living area

60 m²

Storeys

Single storey with mezzanine

Sleeping area

Bedroom on the mezzanine

Bathroom

Bathroom with shower

Kitchen

Kitchen in the living room

Living space

Living room with access to the terrace

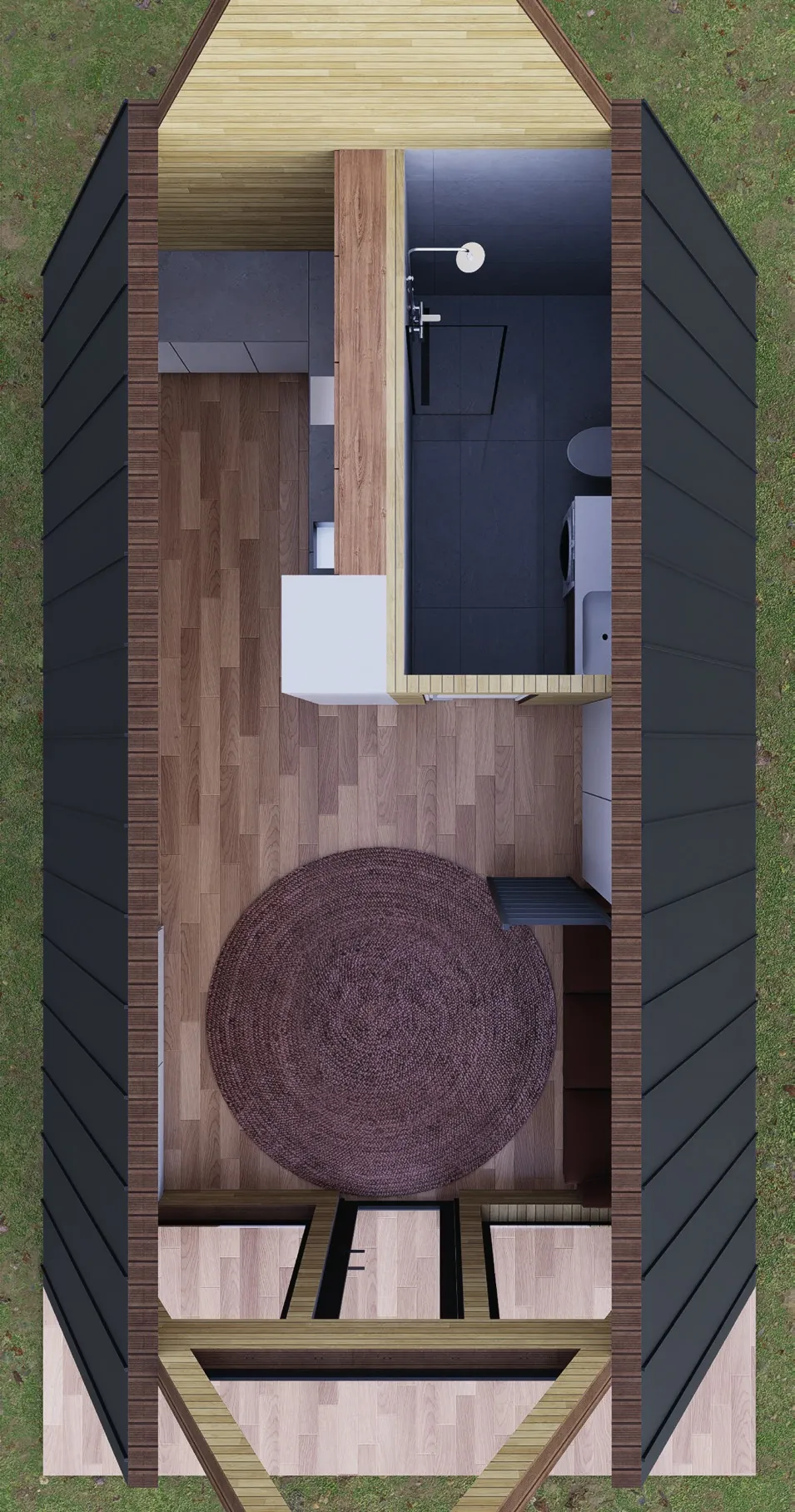

Floor plan

3D view

Technical specifications

Insulation

floor 200 mm · walls and roof 150 mm

Windows

WDS 76 AD plus, 2-chamber

External dimensions

9100 × 5070 mm

Load-bearing structure

Kiln-dried pine 150 × 50 mm

Floor

OSB 22 mm

Roof and facade

Metal USS 0,45 matt, colour of your choice

Facade cladding and terrace

Kiln-dried spruce, treated with Tikkurila Valtti Plus Terrace Oil

Membranes

Strotex Dynamic + vapour barrier Strotex AL 90

With a heat pump and solar panels the home comes closer to near-zero-energy level; whether it meets the local requirements is calculated per project by an energy consultant. Whether a home from 50 m² needs a ventilation system depends on the local rules.
